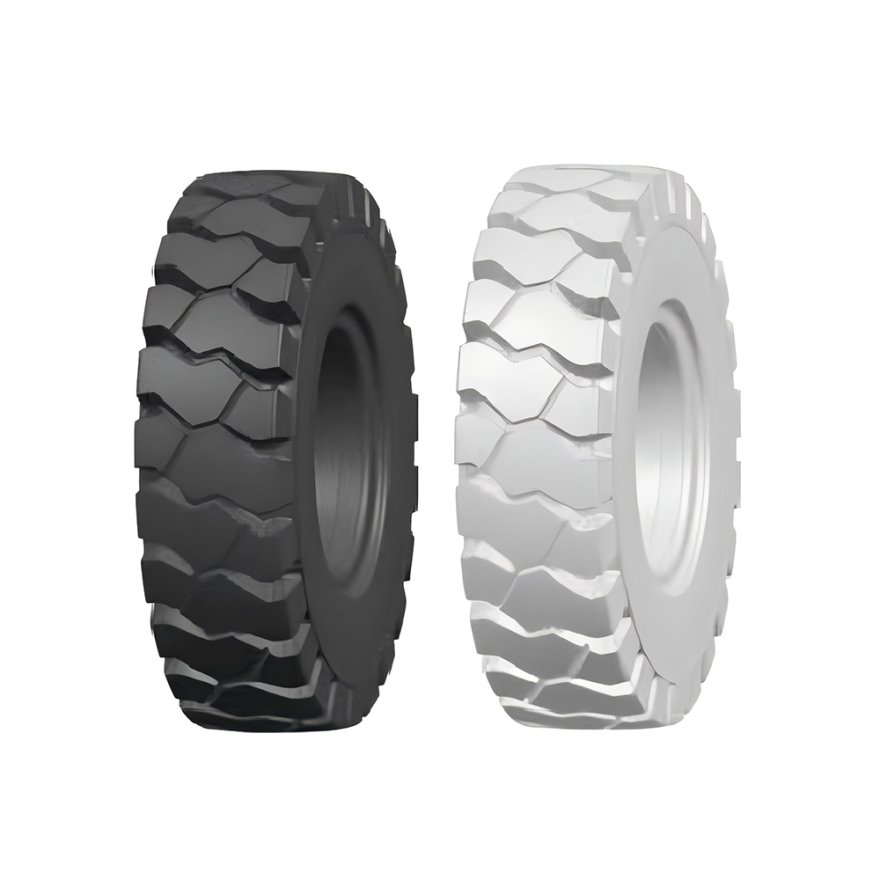

H-4 Wheeled Solid Tirepng

PRODUCT DESCRIPTION:

★ Wide driving surface,deep patterns,anti-cutting capability.

★ It has excellent wear-resistance,heat-dissipation performance,anti-cutting and anti-puncture capabilities. Wide driving surface enhances the comfort of smooth roads.

The H-4 solid tire is built for material handling equipment running long shifts on hard, abrasive floors. A wide driving surface spreads load across a larger contact area for stable running, while the deep tread holds grip on dusty, oily, or uneven ground.

Solid construction removes punctures and air loss entirely, and a wear-resistant compound with strong heat dissipation keeps performance consistent through high-cycle duty. Cut and puncture protection in both tread and sidewall makes the H-4 a dependable, low-maintenance choice for forklifts, plant trailers, and scrap-handling fleets.

Typical applications include forklift fleets in manufacturing plants, steel handling, foundries, and recycling facilities where sharp material is part of daily work.

(0) Reviews

INQUIRE NOW

Specifications

Tire Size	Rims	Assembly		0.D.	S.W..	Load Capacity/Kg				Weight Kg
		Assembly		0.D.	S.W..	@10km/h		@25km/h
		Nomd	Quick	±5mm	±5mm	Driving	Steering	Driving	Steering
15*4.5-8	3.00	√	√	377	108	1050	775	850	655	10
16*6-8	4.33	√	√	406	144	1545	1190	1305	1005	16
5.00-8	3.00	√	√	456	128	1255	965	1060	815	19
18*7-8	4.33	√	√	460	163	2350	1880	2110	1585	25
6.00-9	4.00	√	√	515	147	1975	1520	1675	1290	24
21*8-9	6.00	√	√	522	192	2890	2225	2455	1890	37
200/50-10	6.50	√		460	190	2910	2240	2470	1900	25
6.50-10	5.00	√	√	562	163	2715	2090	2310	1775	37
23*9-10	6.50	√	√	583	212	3730	2870	3160	2430	51
7.00-12	5.00	√	√	660	174	3105	2390	2635	2025	49
28*9-15	7.00	√	√	682	204	4060	3125	3445	2650	55
7.50-15	5.50	√	√	753	187	3805	2925	3225	2480	66
2.50-15	7.50	√	√	685	217	4365	3490	3930	2955	70
8.25-15	6.50	√	√	785	210	5085	3910	4310	3315	86
3.00-15	8.00	√	√	813	239	6895	5305	5850	4500	113
9.00-16	6.50	√	-	865	232	4480	3445	3795	2920	115
8.00-20	6.50	√		895	230	5135	4245	4325	3570	111
8.25-20	7.00	√	-	934	212	5335	4445	4525	3770	116
