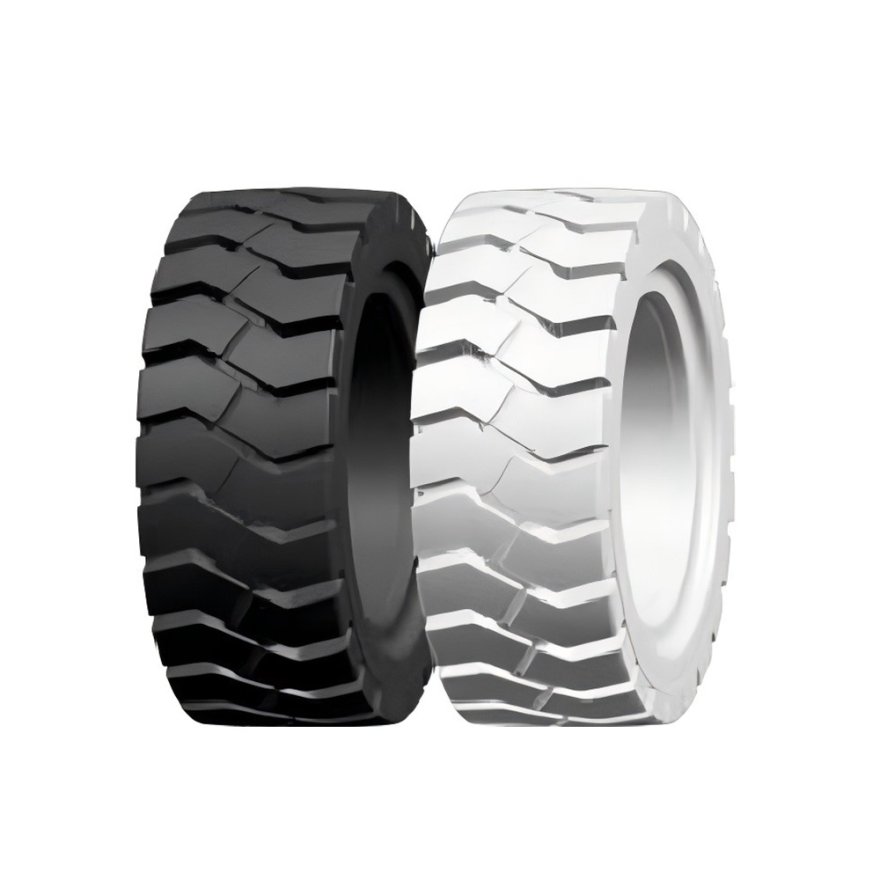

H-5 Wheeled Solid Tire

PRODUCT DESCRIPTION:

★ Thickand deep patterns

★ Cutting-resistant and puncture-resistant capability.

The H-5 solid tire uses a thick, deep tread pattern to deliver extended service life. The additional tread depth provides more wearable rubber, delaying replacement and reducing cost per operating hour.

Cutting and puncture resistance is built into both compound and construction, protecting against sharp metal, glass, and debris. Solid construction eliminates flats and removes inflation maintenance from the schedule entirely. For heavy industrial equipment in punishing environments, the H-5 delivers long life with minimal intervention.

Typical applications include heavy industrial equipment in steel plants, scrap yards, and glass handling, where thick tread depth pays for itself through extended service.

(0) Reviews

INQUIRE NOW

Specifications

Tre Size	Rims	ASsembly		O.D	S.W.	Load Capacity kg				Weight Kg
		ASsembly		O.D	S.W.	@10km/h		@25km/h
		Normal	Quick	±5mm	±5mm	Driving	Stering	Driving	Stering
355/50-20	10.00	√		815	315	9970	7900	8970	6900	115
355/65-15	9.75	√	√	818	313	8800	8000	7800	6000	145
36*12.5-20	9.00	√		925	324	7230	6665	6432	5899	163
40*12.5-20	9.00	√	-	970	326	8270	7700	7352	7000	190
