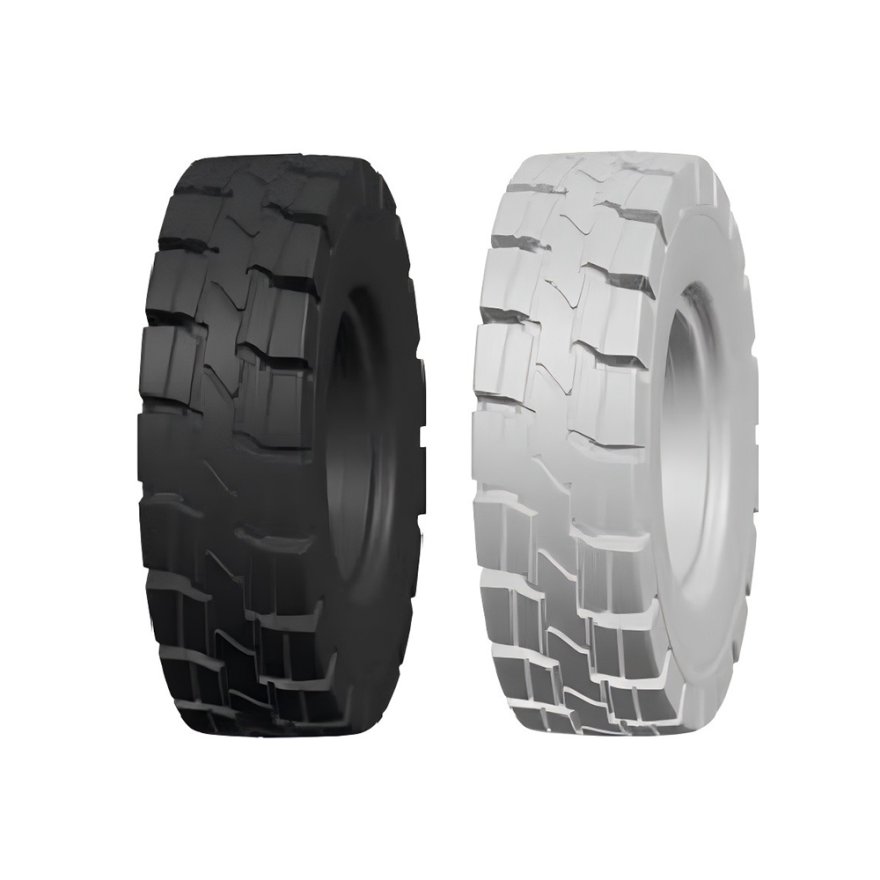

H-3 Wheeled Solid Tire

PRODUCT DESCRIPTION:

★ Low rolling resistance,directional stability.

★ Suitable for electric forklifts,AGV vehicles and other equipment that require long-term power supply,reducing energy consumption.At the same time,it has good directional stability when moving in a straight line and is often used on smooth indoor floors.

(92) Reviews

INQUIRE NOW

Specifications

Tire Size	Rims	Assembly		O.D.	S.W.	Load Capacitylkg				Weight Kg
		Assembly		O.D.	S.W.	@10km/h		@25km/h
		Nomal	Quick	±5mm	±5mm	Driving	Steering	Driving	Steering
18*7-8	4.33	√	√	459	155	2350	1880	2110	1585	23
6.00-9	4.00	√	√	519	148	1975	1520	1675	1290	28
200/50-10	6.50	√	√	460	192	2910	2240	2470	1900	26
6.50-10	5.00	√	√	569	158	2715	2090	2310	1775	36
23*9-10	6.50	√	√	578	210	3730	2870	3160	2430	52
7.00-12	5.00	√	√	641	176	3105	2390	2635	2025	48
28*9-15	7.00	√	√	678	214	4060	3125	3445	2650	59
8.25-15	6.50	√	√	793	209	5085	3910	4310	3315	83
3.00-15	8.00	√	√	838	300	6895	5305	5850	4500	136
7.50-16	6.00	√	-	786	203	4770	3670	4050	3110	76
8.25-16	6.50	√	√	815	209	4070	3130	3450	2655	88
