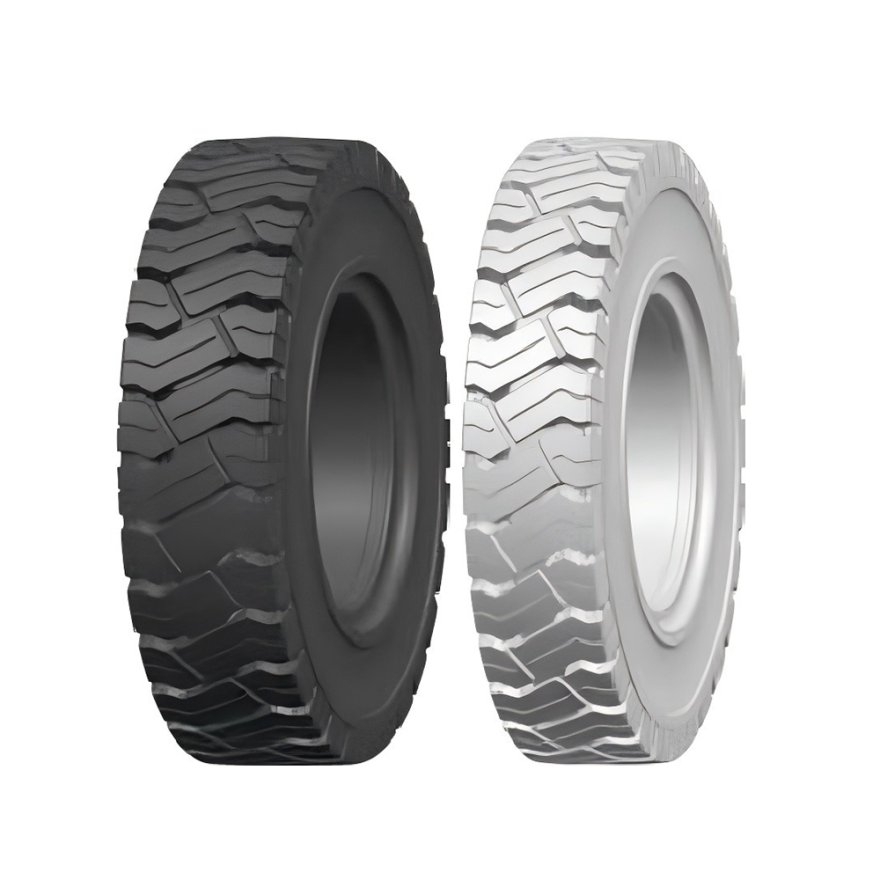

H-2 Wheeled Solid Tire

PRODUCT DESCRIPTION:

★ Anti-skid,traction priority

★ Suitable for heavy-duty equipment (such as forklifts,port machinery),providing strong traction on hard surfaces(such as cement,asphalt).The groove design enables rapid drainage,reducing the risk of skidding on slippery ground.

The H-2 solid tire is built around traction for forklifts and port machinery working on concrete, polished cement, and asphalt. Its groove design channels water and contaminants away from the contact patch, reducing skid risk on wet or slippery ground.

Solid construction eliminates puncture risk and pressure maintenance, while the robust casing handles repeated heavy loads without interruption. For operations moving heavy material across hard, wet, or mixed surfaces, the H-2 delivers the grip and reliability that keep equipment productive shift after shift.

Typical uses include reach stackers, terminal tractors, and yard forklifts working quay surfaces and covered docks where wet ground is routine.

(0) Reviews

INQUIRE NOW

Specifications

Tre Size	Rims	Assembly		0.D.	S.W..	Load Capacitylkg				Weight Kg
		Assembly		0.D.	S.W..	@10km/h		@25km/h
		Nomal	Quick	±5mm	±5mm	Driving	Steering	Driving	Steering
3.50-5	3.00	√	一	300	100	610	580	515	490	10
4.00-8	3.00	√	√	400	102	1090	840	925	710	11
15*4.5-8	3.00	√	√	377	112	1005	775	850	655	10
16*6-8	4.33	√	√	398	139	1545	1190	1305	1005	16
5.00-8	3.00	√	√	456	111	1255	965	1060	815	17
18*7-8	4.33	√	√	450	132	2350	1880	2110	1585	21
140/55-9	4.00	√	√	382	121	1380	1060	1170	900	12
6.00-9	4.00	√	√	518	131	1975	1520	1675	1290	27
21*8-9	6.00	√	√	530	172	2890	2225	2455	1890	36
200/50-10	6.50	√	√	442	170	2910	2240	2470	1900	22
6.50-10	5.00	√	√	570	146	2715	2090	2310	1775	35
23*9-10	6.50	√	√	583	206	3730	2870	3160	2430	49
7.00-12	5.00	√	√	642	155	3105	2390	2635	2025	47
28*9-15	7.00	√	√	671	199	4060	3125	3445	2650	58
28*12.5-15	9.75	√	√	695	297	5660	5430	5260	4960	88
8.25-15	6.50	√	√	818	198	5085	3910	4310	3315	91
3.00-15	8.00	√	√	813	228	6895	5305	5850	4500	106
9.00-20	7.00	√	-	1005	220	6365	5305	5400	4500	152
10.00-20	7.50/8.00	√	-	1061	254	7300	6085	6200	5165	192
11.00-20	7.00/8.00/8.50	√	-	1061	254	7715	6430	6540	5450	192
12.00-20	8.00/8.50	√	-	1085	269	8920	7435	7560	6300	223
12.00-24	8.50	√	-	1206	320	8335	7960	6945	6540	273
14.00-20	10.00	√	一	1368	375	10620	9950	9860	8215	453
14.00-24	10.00	√		1368	205	12165	10135	10135	8595	417
