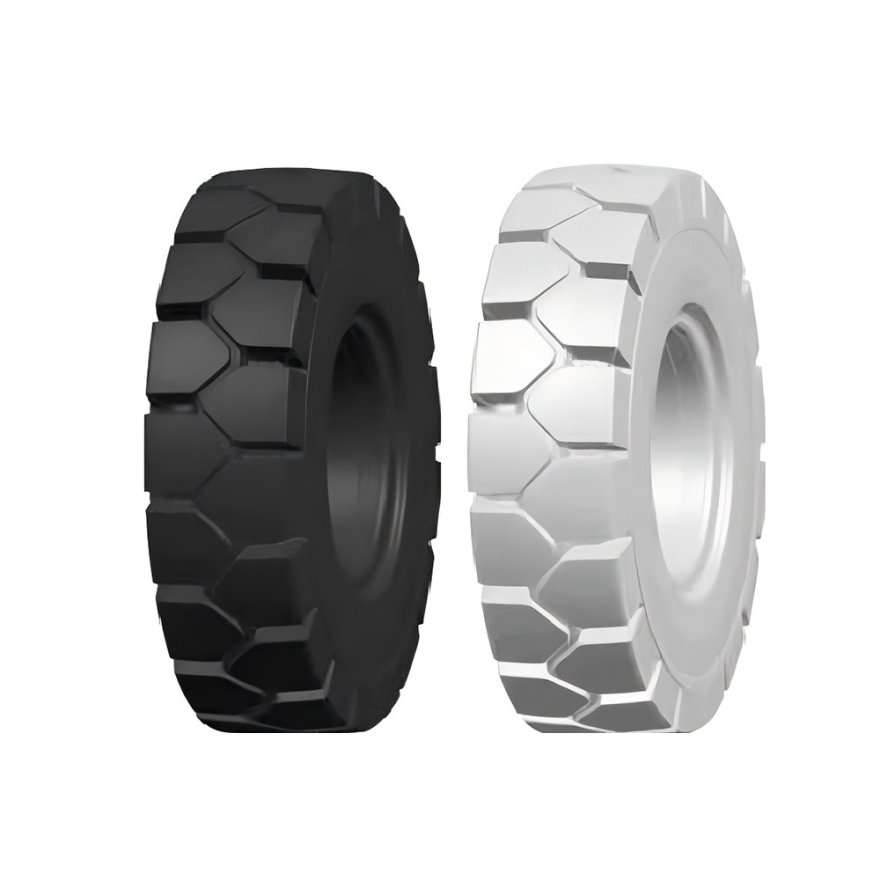

H-1 Wheeled Solid Tire

PRODUCT DESCRIPTION:

★ Wide driving surface,large pattern blocks.

★ Suitable for the vast majority of situations,including uneven roads,slippery roads,and roads with numerous uphill and downhill sections with strong versatility.

The H-1 solid tire is a versatile choice for mixed industrial duties. A wide driving surface and large pattern blocks increase the contact area, improving stability for loaded equipment on gradients and during direction changes.

Solid construction removes punctures, pressure loss, and the related maintenance routine altogether. Wear-resistant compounding extends service intervals, while the stable block layout promotes even wear. For fleets running different machines across varied indoor and outdoor surfaces, the H-1 offers adaptable performance with genuinely low upkeep.

Typical applications span warehouses, workshops, loading bays, and mixed outdoor yards where machines handle varied loads across a single shift.

(0) Reviews

INQUIRE NOW

Specifications

Tire Slze	Rims	Assembly		0.D.	S.W.	Load Capacitylkg				Weight Kg
		Assembly		0.D.	S.W.	@10km/h		@25km/h
		Normal	Quick	±5mm	±5mm	Driving	Steering	Driving	Steering
3.20-8	3.00	√	一	316	111	470	360	390	300	6
4.00-8	3.00	√	√	402	110	1090	840	925	710	12
5.00-8	3.00	√	√	456	111	1255	965	1060	815	19
16*6-8	4.33	√	√	406	144	1545	1190	1305	1005	16
18*7-8	4.33	√	√	445	170	2350	1880	2110	1585	22
6.00-9	4.00	√	√	526	138	1975	1520	1675	1290	24
7.00-9	4.50	√	一	540	147	2670	2055	2260	1740	34
21*8-9	6.00	√	√	522	192	2890	2225	2455	1890	34
6.50-10	5.00	√	√	562	163	2715	2090	2310	1775	37
23*9-10	6.50	√	√	583	212	3730	2870	3160	2430	51
7.00-12	5.00	√	√	634	166	3105	2390	2635	2025	49
23*10-12	8.00	√	√	581	230	4450	3425	3770	2900	52
8.25-12	5.00	√	一	729	224	3425	2635	2905	2235	72
27*10-12	8.00	√	√	660	242	4595	3535	3900	3000	75
28*9-15	7.00	√	√	682	204	4060	3125	3445	2650	55
2.50-15	7.00/7.50	√	√	685	217	4365	3490	3930	2955	70
3.00-15	8.00	√	√	838	300	6895	5305	5850	4500	118
8.25-15	6.50	√	√	785	205	5085	3910	4310	3315	86
6.50-16	5.50	√	-	720	158	3545	2725	3005	2310	51
